高壓隔離低壓電源

高壓隔離低壓電源

Advanced Energy的浮動熱甲板低壓電源係列為需要低壓電源和高壓隔離控製的係統提供了集成解決方案。這些子係統將高度隔離的DC到DC多輸出低壓電源與先進的隔離數字和模擬I/O拓撲相結合,為浮動熱甲板電路提供電源和控製。

首頁 > 產品中心 > 高壓電源 > PCB安裝型高壓電源 > 高壓隔離低壓電源

高壓隔離低壓電源

返回
323
323
323
323

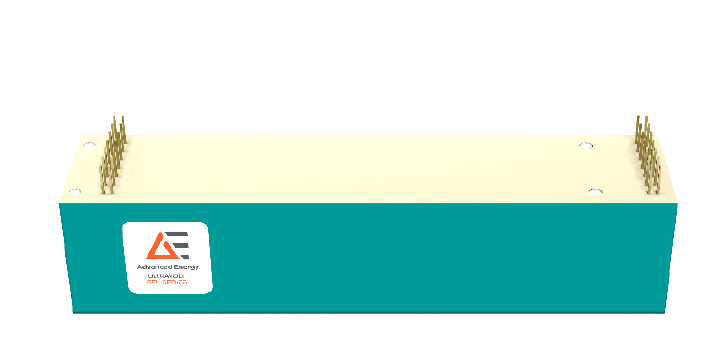

Enhanced Floating Hot Deck Low-Voltage Power Supplies

EFL Series

The UltraVolt® EFL series of floating hot deck, low voltage (LV) power supplies offers an integrated solution for systems requiring LV power and controls with high voltage isolation. Combining a highly isolated, DC-DC, multioutput low-voltage power supply (LVPS) with an advanced isolated digital and analog I/O topology, the EFL subsystem provides both power and controls to floating-hot deck circuitry. This solution, when combined with one or more Advanced Energy high voltage power supplies or other circuitry, can provide high performance solutions for a variety of applications.

特點

  • Precision analog control
  • Linearity of ±0.05% and accuracy of ±0.2%
  • 10 ppm temperature coefficient
  • Isolated up to 15 kV or 30 kV
  • Isolation resistance of 150 GΩ (15 kV) or 2 GΩ (30 kV)
  • 4 regulated floating LV power outputs
  • Isolated digital and analog I/O to and from floating hot deck

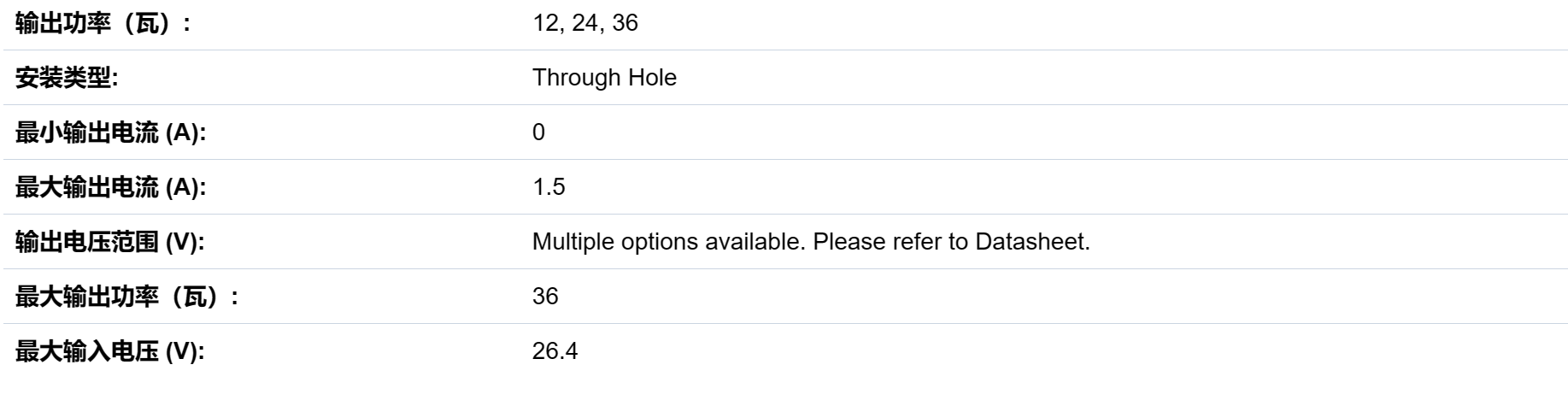

規格
